GSXR Fiat 500 motorcycle engine motor

« 1 2 »

Engine is in ]. Took alot to get here.

Just another shot

The engine is back out again.

Engine back in again.

Shot of the left side

Shot of right side

126 Rear suspension

Shot of jackshaft sprocket and axle

Fiat 600 Wheel Modified to hold a 500 hubcap

Hubcap looks in place

A jig built to square the wheels up

The result of a 12mm increase in backspacing

A torque limiter I plan to use in the future

another ebay aquisition.... a torque limiter!!!!

Another Ebay item...The reverse motor and additional 25 amp generator

The Fiat Fiat should have built!!! Installing a GSXR Suzuki Motorcycle engine in the smallest Fiat Automobile proved to be more of a challenge than expected. It is now running with 104 horsepower 6 speeds and uses all origional fiat controls. The interior remained stock except for the instrument cluster. I couldn't resist. Videos are posted at www.streetfire.net

« previous | next »

Print Photos | View Full-Size Image

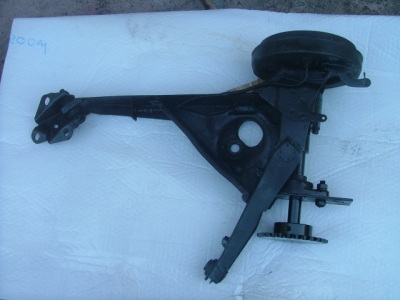

126 Rear suspension

Dont believe it if someone tells you 126 suspension and 500 suspensions are the same. I had to remove the drum brakes and hubs from the 126 units and mout them on the 500 suspension. Also in this picture is the machined axles and the additional support for the bearing.
